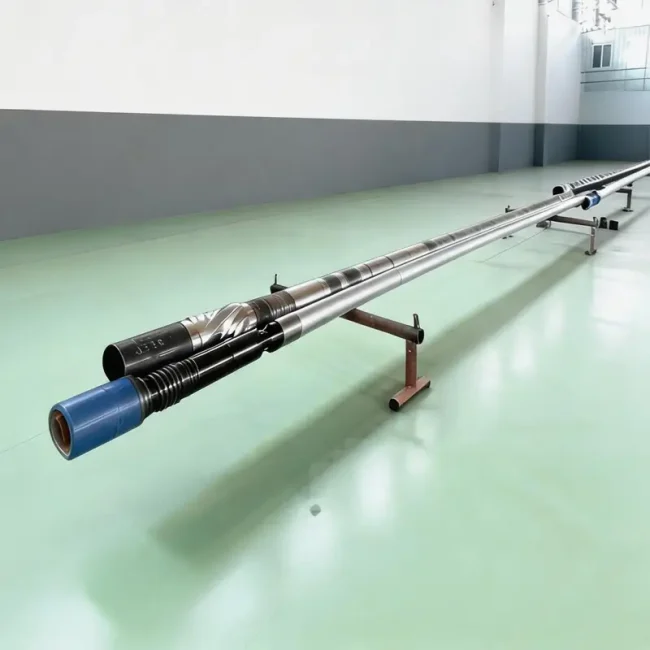

The KTK Energy Core Barrel System is a high-performance downhole coring solution designed for accurate geological sampling and reservoir evaluation in oil & gas drilling operations.

Engineered in accordance with API standards, this system enables high core recovery rates while maintaining optimal rate of penetration (ROP). It operates in conjunction with core bits to ensure efficient cutting, minimal formation disturbance, and reliable core integrity.

Constructed from high-tensile cold-drawn tubing, the inner and outer barrels provide excellent straightness and structural strength, ensuring precise alignment under complex downhole conditions. The heat-treated alloy steel core head enhances durability and supports long-term performance in extended coring runs.

As a supplier + manufacturer hybrid, KTK Energy integrates engineering design, manufacturing capability, and global supply chain support to deliver field-proven coring solutions for international oilfield service companies.

Technical Specifications

Model	Length (m)	Outer Barrel OD × ID (mm)	Inner Barrel OD × ID (mm)	Top Connection	Bit Size	Core Diameter (mm)
KT89-45	4.6	89 × 70	60 × 51.8	2-3/8″ IF	4-1/8″	45
KT121-66	9.2 / 18.4	121 × 93	82 × 71	3-1/2″ IF	5-7/8″ – 6-1/2″	66
KT127-70	9.2 / 18.4	127 × 103	89 × 76	3-1/2″ IF	5-7/8″ – 6-1/2″	70
KT146-89	9.2 / 18.4	146 × 118	108 × 94	3-1/2″ IF	6-1/2″ – 7-7/8″	89
KT172-101	9.2 / 18.4	172 × 136	121 × 108	4-1/2″ IF	7-1/2″ – 9-5/8″	101
KT178-106	10.8 / 21.6	178 × 154	127 × 112	4-1/2″ IF	8-1/2″ – 9-5/8″	106
KT203-133	9.2 / 18.4	203 × 169	159 × 140	4-1/2″ IF	12-1/4″	133

Engineering Characteristics

• High straightness tubing for accurate alignment
• Heat-treated alloy steel head for wear resistance
• Optimized internal clearance for smooth core entry
• Compatible with various core bit designs
• Designed for extended coring runs

Key Features

1. High Core Recovery Efficiency

Designed to maximize core recovery while preserving formation integrity for accurate analysis.

2. Dual-Barrel Precision Structure

Inner and outer barrel system ensures stable core capture and reduces core damage.

3. High-Strength Material Construction

Cold-drawn tubing and alloy steel components provide excellent durability under high load and vibration.

4. Optimized Coring Performance

Works seamlessly with core bits to improve cutting efficiency and reduce formation disturbance.

5. Extended Service Life

Heat-treated components enhance wear resistance and support long operational cycles.

6. BHA Integration Capability

Easily integrated into standard Bottom Hole Assembly (BHA) for drilling and coring operations.

Applications

The KTK Energy Core Barrel System is widely used in:

Oil & Gas Exploration

• Geological formation sampling
• Reservoir rock analysis
• Exploration drilling

Reservoir Evaluation

• Porosity and permeability studies
• Lithology identification
• Core-based formation evaluation

Hard Formation Coring

• Consolidated rock formations
• Abrasive geological layers
• Deep well coring operations

Directional & Horizontal Wells

• Horizontal well coring
• Extended reach drilling (ERD)
• Complex trajectory wells

Advantages

✔ High-Quality Core Integrity

Minimizes formation disturbance and ensures accurate core samples.

✔ Improved Drilling Efficiency

Balances high core recovery with optimized rate of penetration (ROP).

✔ Reliable Downhole Performance

Stable operation in high-load, high-vibration, and complex formations.

✔ Long Service Life

Durable materials reduce tool wear and replacement frequency.

✔ Reduced Non-Productive Time (NPT)

Reliable performance minimizes operational interruptions.

✔ Supplier + Manufacturer Hybrid (KTK Energy)

KTK Energy combines:

• Engineering expertise
• Manufacturing participation
• Global sourcing capability

Delivering cost-effective and high-reliability coring systems for global drilling contractors.

FAQ

What is a core barrel system used for?

A core barrel system is used to collect cylindrical rock samples (cores) from the wellbore for geological and reservoir analysis.

How does a core barrel system work?

It uses an inner and outer barrel assembly with a core bit to cut and capture formation samples while drilling.

What is the difference between core drilling and conventional drilling?

Core drilling focuses on retrieving intact formation samples, while conventional drilling primarily focuses on wellbore creation.

Can core barrel systems be used in horizontal wells?

Yes, KTK Energy core barrel systems are suitable for vertical, directional, and horizontal well coring operations.

What formations are suitable for core barrel systems?

They are suitable for:

• Hard rock formations
• Consolidated reservoirs
• Abrasive geological layers

Why is core recovery important in oil & gas drilling?

Core recovery provides critical data for reservoir evaluation, helping optimize drilling and production strategies.

Conclusion

The KTK Energy Core Barrel System is a reliable and efficient solution for high-quality coring operations in oil & gas drilling.

With its precision-engineered dual-barrel design, high-strength materials, and optimized coring performance, it enables operators to achieve accurate geological insights while maintaining drilling efficiency.

As a trusted supplier + manufacturer hybrid, KTK Energy delivers API-compliant, field-proven coring systems tailored for global oilfield applications across the Middle East, Africa, North America, and offshore environments.
