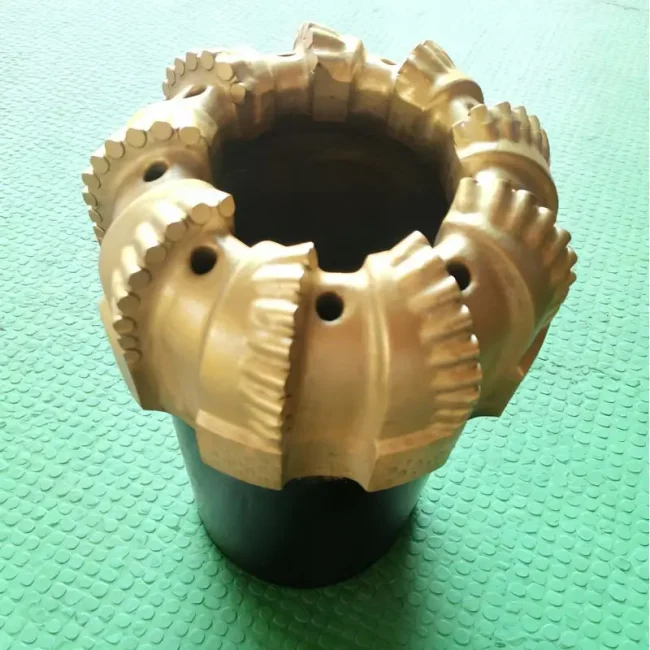

A Core Drill Bit (Coring Bit) is a specialized downhole drilling tool designed to cut and retrieve cylindrical core samples from subsurface formations. Unlike conventional drill bits that crush or pulverize formations, coring bits enable continuous core recovery, providing intact geological samples for formation evaluation and reservoir analysis.
At KTK Energy Limited, our core drill bits are engineered to meet API standards, ensuring reliable performance in demanding oilfield environments. These tools are widely used in exploration drilling, reservoir characterization, and geotechnical investigations, where accurate formation data is critical for decision-making.
Our coring solutions include PDC coring bits, diamond core bits, and matrix body designs, optimized for high penetration rates, durability, and maximum core recovery.
Technical Specifications
|
Parameter |
Specification |
|
Bit Type |
PDC Core Bit / Diamond Core Bit / Carbide Core Bit |
|
Bit Size Range |
3 1/2″ – 12 1/2″ |
| Blade Count |
3 – 8 blades (PDC matrix design) |
| Cutting Structure |
PDC cutters / Natural or synthetic diamond / Tungsten carbide |
|
Body Type |
Matrix body / Steel body |
|
Core Diameter |
Customized based on BHA design |
|
Connection Type |
API Regular / IF / FH |
| Cooling Type |
Mud circulation (oilfield) / Water (surface coring) |
| Standards |
API compliant |
| Application Depth |
Customizable |
Key Features
1. High-Efficiency Core Recovery
- Designed for maximum core integrity and recovery rate
- Minimizes formation disturbance for accurate geological analysis
2. Advanced Cutting Structure
- Optimized PDC cutter layout and angle design
- High-performance diamond or carbide segments for hard and abrasive formations
3. Engineered Fluid Hydraulics
- Optimized nozzle and fluid channel design
- Efficient cuttings removal and bit cooling, improving ROP and tool life
4. Durable Matrix & Blade Design
- 3–8 blade configurations for different formation types
- Enhanced wear resistance for extended drilling intervals
5. Flexible Configuration
- Available in coring and non-coring PDC designs
- Compatible with various BHA (Bottom Hole Assembly) systems
Applications
KTK Energy Core Drill Bits are widely used in:
- Oil & Gas Exploration Drilling– Formation evaluation and reservoir analysis
- Geological Coring Operations– Accurate subsurface data acquisition
- Mining & Mineral Exploration– Ore body sampling
- Geotechnical Investigation– Soil and rock analysis
- Directional Drilling Systems– Integrated with MWD/LWD and coring assemblies
Advantages
- ✅ API-compliant quality assurancefor global oilfield operations
- ✅ High core recovery rate, improving data reliability
- ✅ Optimized drilling performance, reducing operational costs
- ✅ Strong adaptabilityacross soft to hard formations
- ✅ Engineering-driven design, backed by KTK Energy expertise
- ✅ Global supply capability, supporting projects in Middle East, Africa, Asia-Pacific, and Americas
FAQ
Q1: What is the difference between a core drill bit and a conventional drill bit?
A core drill bit is designed to extract a cylindrical core sample, while conventional drill bits crush the formation without preserving sample integrity.
Q2: What types of core drill bits does KTK Energy offer?
We supply PDC core bits, diamond core bits, and carbide core bits, suitable for various formations and drilling conditions.
Q3: Are your core drill bits API certified?
Yes, all products from KTK Energy Limited are manufactured and validated in accordance with API standards to ensure reliability and performance.
Q4: What formations are suitable for PDC coring bits?
PDC coring bits are ideal for medium to hard formations, offering high ROP and durability.
Q5: Can the bit size and configuration be customized?
Yes, we provide customized sizes (3 1/2″ – 12 1/2″) and blade configurations (3–8 blades) based on your drilling requirements and BHA design.
Why Choose KTK Energy?
As an engineering-driven supplier, KTK Energy Limited combines manufacturing participation with strong China supply chain integration, delivering cost-effective, high-performance drilling tools to global oilfield service companies and drilling contractors.
