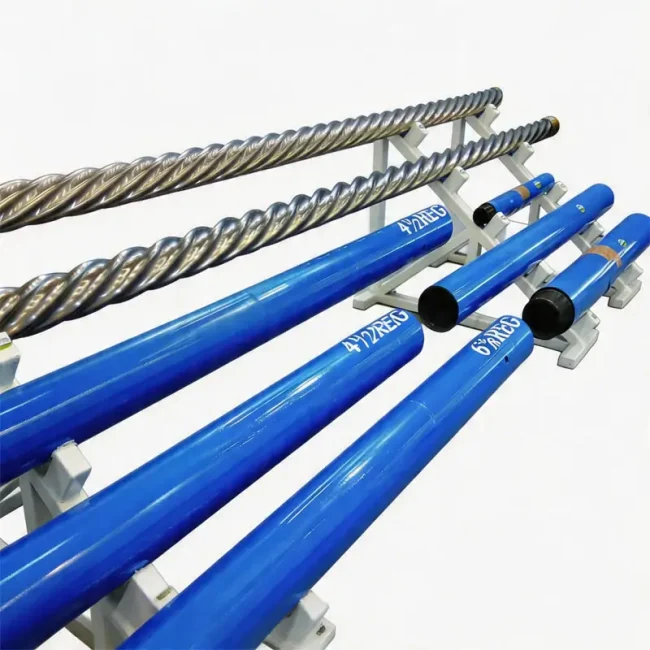

The Downhole Drilling Motor (Positive Displacement Motor, PDM) from KTK Energy is a high-performance downhole power tool designed to convert hydraulic energy from drilling fluid into mechanical rotation of the drill bit, enabling efficient drilling in vertical, directional, and horizontal wells.
Engineered for demanding oilfield environments, KTK Energy downhole motors are widely used in directional drilling, trajectory control, sidetracking, reaming, and workover operations. The system incorporates advanced elastomer technology, optimized rotor-stator design, and multiple configuration options to deliver higher torque, improved efficiency, and extended service life.
With a full range of sizes from 1 11/16″ to 26″, and customizable configurations including high-speed, medium-speed, and low-speed motors, KTK Energy provides flexible solutions tailored to diverse drilling conditions worldwide.
Key Features
High Power Output
Advanced rubber compounds improve stator load capacity, increasing output torque and power by 30%–50%.
Adjustable Bent Housing
Bend angle can be adjusted at the wellhead, enabling precise directional control during drilling.
Hollow Rotor Design
Supports various tungsten carbide nozzles to increase flow rate and enhance bit hydraulic power.
Oil-Based Mud Resistance
Special elastomer reduces swelling and performance degradation in oil-based mud systems.
High-Temperature Resistance
Stator rubber designed for stable operation in temperatures up to 150°C–180°C.
High Deflection Capability
Shorter distance between bend point and bit improves build-up rate and trajectory control.
Uniform Thickness Stator
Ensures higher pressure resistance, improved efficiency, and greater power output.
Corrosion & Wear Resistance
Rotor coating enhances durability in saturated saltwater and abrasive environments.
Oil-Sealed Bearing System
Improves lubrication of thrust and radial bearings, extending operational lifespan.
Near-Bit Measurement Compatibility
Supports installation of measurement tools near the bit for improved trajectory accuracy.
Technical Specifications
Size Range
- Hole Size Coverage: 1 11/16″ to 26″
- Common Sizes:
1 11/16″, 2 1/8″, 2 3/8″, 2 7/8″, 3 1/8″, 3 1/2″, 3 3/4″, 4″, 4 1/8″, 4 3/4″, 5″, 5 5/16″, 5 7/8″, 6 1/4″, 6 1/2″, 6 3/4″, 7″, 7 1/4″, 7 3/4″, 8″, 8 1/2″, 9″, 9 5/8″, 11 1/4″
Performance Characteristics
- Motor Type:Positive Displacement Motor (PDM)
- Speed Options:High-speed / Medium-speed / Low-speed
- Flow Rate Range:Wide range depending on configuration
- Torque Output:Enhanced (30%–50% increase with optimized power section)
- Temperature Rating:Up to 180°C
Design Options
- Adjustable bent housing
- Hollow rotor configuration
- Oil-based mud resistant elastomer
- High-temperature resistant stator
- Oil-sealed bearing system
- Near-bit motor configuration
Applications
The KTK Energy Downhole Drilling Motor is widely used in:
Oil & Gas Drilling
- Directional drilling
- Horizontal wells
- Cluster well development
Well Intervention & Workover
- Reaming operations
- Sidetracking
- Wellbore cleanout
Mining & Geological Drilling
- Coal mining drilling
- Complex formation drilling
Complex Drilling Environments
- High-temperature wells
- Oil-based mud systems
- Saltwater and corrosive formations
Advantages
High Drilling Efficiency
Increased torque and optimized hydraulics improve rate of penetration (ROP).
Enhanced Directional Control
Adjustable bend and high deflection design enable precise well trajectory control.
Wide Application Range
Compatible with various drilling fluids and formation conditions.
Long Service Life
Advanced materials and bearing design reduce wear and extend operational cycles.
Flexible Customization
Available in multiple sizes and configurations to meet specific drilling requirements.
Supplier + Manufacturing Capability (KTK Energy)
KTK Energy operates as a hybrid supplier and manufacturing partner, combining engineering participation with a qualified supply chain to deliver reliable downhole motors, consistent quality, and technical support for global drilling contractors.
FAQ
Project Overview
What is a downhole drilling motor?
A downhole drilling motor is a positive displacement motor that converts hydraulic energy from drilling fluid into mechanical rotation to drive the drill bit.
What are the advantages of using a PDM in drilling?
PDMs provide higher torque, improved drilling efficiency, and better directional control compared to rotary drilling alone.
Can downhole motors be used in high-temperature wells?
Yes, KTK Energy motors are designed to operate in temperatures up to 180°C with high-performance elastomer materials.
What is an adjustable bent housing motor?
It allows the bend angle to be adjusted at the surface, enabling better control of well trajectory during directional drilling.
Are downhole motors compatible with oil-based mud?
Yes, KTK Energy motors use specially formulated rubber to minimize swelling and maintain performance in oil-based mud systems.
Tool Comparison (PDM vs Rotary vs Turbine)
Compared to conventional rotary drilling, downhole motors provide higher torque at the bit and improved drilling efficiency. Compared to turbine motors, PDMs offer better performance in variable flow conditions and are more widely used in directional drilling applications.
Downhole Drilling Motor (PDM) | High Torque Directional Drilling Motor Supplier
High-performance downhole drilling motor (PDM) with high torque, adjustable bent housing, and high-temperature resistance up to 180°C. KTK Energy global supplier & manufacturer from China.
Conclusion
The Downhole Drilling Motor (PDM) from KTK Energy is a reliable and high-efficiency solution for modern drilling operations.
With advanced design features, high torque output, and adaptability to harsh environments, it plays a critical role in improving drilling performance, reducing operational risks, and achieving accurate wellbore placement.
