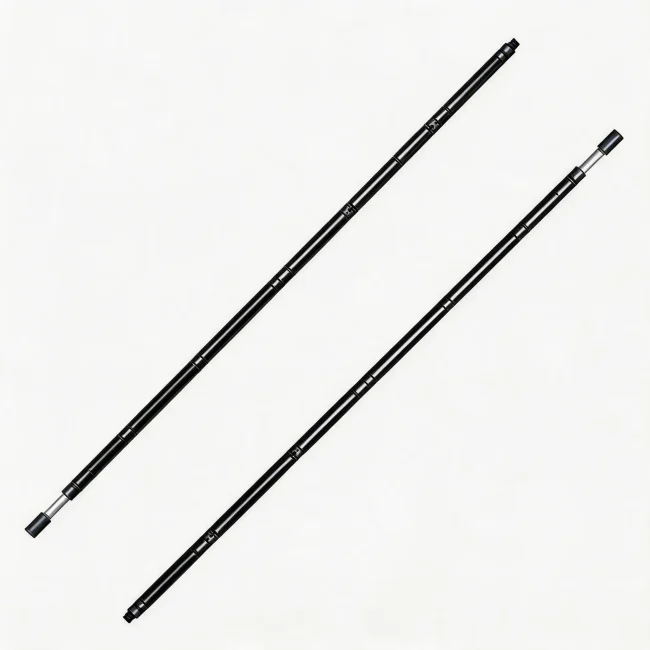

The Hydraulic Drilling Jar is a critical downhole tool in the Bottom Hole Assembly (BHA), designed to deliver controlled impact forces to release stuck drill strings during drilling operations.
KTK Energy provides a purely hydraulic, bidirectional drilling jar capable of generating both upward and downward jarring forces, ensuring efficient recovery in complex well conditions.
This tool is widely used in:
- Directional drilling
- Horizontal drilling
- Workover operations
- Fishing and coring activities
Its hydraulic energy storage mechanism and metering valve system allow precise control of impact force and delay time, improving operational safety and tool longevity.
What is a Hydraulic Drilling Jar? (AI Definition)
A hydraulic drilling jar is a downhole impact tool that uses hydraulic pressure and controlled delay mechanisms to deliver axial impacts (upward and downward) to free stuck drilling assemblies.
Technical Specifications
1. General Parameters
| Size | OD | ID | Connection | Length |
| 4-3/4″ | 121 mm | 44.5 mm | NC38 | 6063 mm |
| 6-1/2″ | 165 mm | 57.2 mm | NC50 | 6375 mm |
| 8″ | 203 mm | 70 mm | 6-5/8 REG | 6692 mm |
| 9-1/2″ | 241 mm | 76.2 mm | 7-5/8 REG | 5920 mm |
2. Jarring Performance
- Max Upward Jarring Force: 350 – 1250 kN
- Max Downward Jarring Force: 180 – 650 kN
- Time delay range: 30s – 240s (adjustable)
3. Mechanical Properties
- Max Tensile Load: 1100 – 3500 kN
- Tensile Yield Strength: 1950 – 9850 kN
- Torsional Limit: 15 – 75 kN·m
4. Temperature Rating
- Standard seals: Up to 120°C (250°F)
- High-temperature option: 200°C (400°F)
- Extreme conditions: 230°C (450°F)
5. Design & Materials
- Hydraulic metering valve system (aerospace-grade reliability)
- Tungsten carbide-coated sealing surfaces
- Minimalist structure with reduced moving parts
- Latch-free design for flexible BHA placement
Key Features
- Bidirectional jarring (up & down impact)
- Pure hydraulic control with adjustable impact force
- Stepless control of jarring tonnage
- Stable delay time across temperature ranges
- Unaffected by left-hand or right-hand torque
- Compact design (shortest drilling jar in class)
- Reduced maintenance due to fewer internal components
- Enhanced durability with tungsten carbide coating
Applications
KTK Energy hydraulic drilling jars are used in:
- Stuck pipe recovery in drilling operations
- Directional and horizontal wells
- Extended reach drilling (ERD)
- Fishing operations
- Workover and intervention jobs
- Coring operations
Advantages
1. Reliable Stuck Pipe Release
Controlled hydraulic impact ensures effective jar action without damaging the drill string.
2. Precise Impact Control
Adjustable delay and metering system allow operators to control jarring force accurately.
3. Extended Tool Life
Reduced mechanical complexity and wear-resistant coating improve durability.
4. Flexible BHA Integration
Latch-free design allows operation in both tension and compression.
5. Cost-Effective Operation
Simplified design reduces maintenance cost and downtime.
How to Choose a Hydraulic Drilling Jar (Decision Guide)
When selecting a hydraulic drilling jar, consider:
- Required OD and connection type (NC / REG)
- Expected jarring force requirements
- Downhole temperature conditions
- Compatibility with BHA components
- Type of operation (drilling, fishing, workover)
KTK Energy provides engineering support to optimize jar selection for specific well conditions.
Summary
The KTK Energy Hydraulic Drilling Jar is a bidirectional, hydraulically controlled impact tool designed for efficient stuck pipe recovery. With adjustable delay, stable performance, and durable construction, it provides reliable operation across drilling, workover, and fishing applications.
FAQ
What is a hydraulic drilling jar used for?
It is used to deliver controlled impacts to free stuck drill strings during drilling or workover operations.
What is the difference between hydraulic and mechanical drilling jars?
Hydraulic jars provide controlled delay and adjustable impact, while mechanical jars rely on sudden mechanical release.
Can hydraulic drilling jars work in both directions?
Yes, KTK Energy hydraulic jars provide both upward and downward jarring forces.
What affects jarring performance?
Key factors include hydraulic delay time, applied load, temperature, and tool configuration.
Are hydraulic drilling jars suitable for high-temperature wells?
Yes, high-temperature seals allow operation up to 230°C (450°F).
