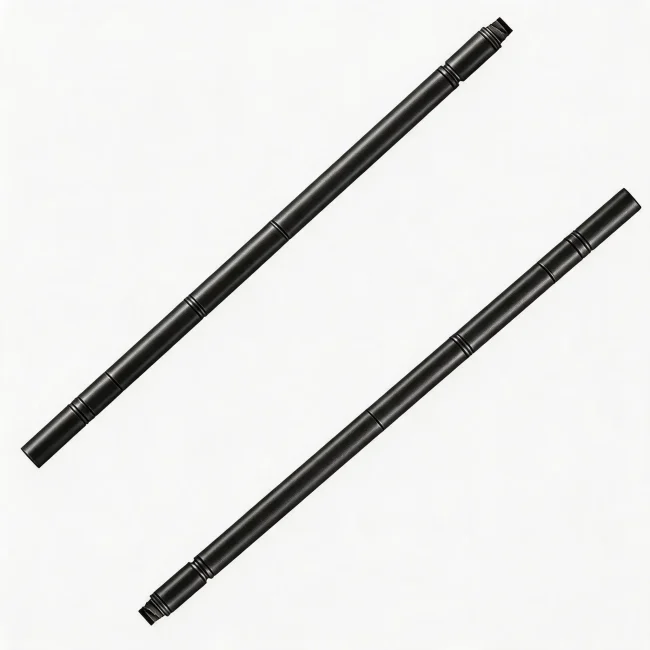

The KTK Energy Hydraulic Jar Intensifier is a high-performance downhole impact enhancement tool designed to significantly increase the jarring efficiency of hydraulic fishing jars in oil & gas drilling operations.

It is typically deployed in combination with a super fishing jar or hydraulic jar assembly to amplify impact energy at the stuck point. By accelerating both the fishing jar (upper BHA) and drill collars (lower BHA), the intensifier increases impact velocity, resulting in higher release force for stuck pipe situations.

In addition, the system reduces drill string rebound after jarring, minimizing shock transmission to the drill stem and improving overall BHA reliability in complex drilling environments such as deep wells, HPHT wells, and directional drilling operations.

KTK Energy provides this tool as part of a complete downhole fishing and well intervention solution system, supporting global oilfield service companies with reliable stuck pipe recovery technology.

Key Features

1. Impact Energy Amplification

Increases hydraulic jar impact force by accelerating both upper and lower BHA components.

2. Optimized Stuck Pipe Recovery Performance

Improves efficiency of freeing stuck drill strings in challenging formations.

3. Shock Load Reduction

Reduces rebound effects and minimizes harmful stress on drillstring components.

4. High Load Capacity Design

Engineered for extreme tensile and torsional loads in deep and complex wells.

5. Full Size Range Compatibility

Compatible with multiple jar sizes from 4-1/4″ to 9-1/2″.

6. BHA Integration Design

Seamlessly integrates into fishing jar assemblies without disrupting drilling operations.

Technical Specifications

Available Models & Performance Data

Model	OD (inch/mm)	ID (inch/mm)	Stroke	Max Tensile Load	Torsional Limit	Length	Connection
4-1/4″	108 mm	31.8 mm	215 mm	800 kN	10 kN·m	3578 mm	NC31
4-1/2″	114 mm	38.1 mm	211 mm	900 kN	12 kN·m	3295 mm	NC31
4-3/4″	121 mm	38.1 mm	224 mm	1100 kN	15 kN·m	3318 mm	NC38
5-1/2″	140 mm	38.1 mm	224 mm	1300 kN	20 kN·m	3318 mm	NC31
6-1/4″	159 mm	57.2 mm	329 mm	1600 kN	25 kN·m	3700 mm	NC50
6-1/2″	165 mm	57.2 mm	329 mm	2000 kN	30 kN·m	3700 mm	NC50
7″	178 mm	60 mm	336 mm	2400 kN	35 kN·m	3734 mm	NC50
7-3/4″	197 mm	71.4 mm	333 mm	2600 kN	40 kN·m	3238 mm	6-5/8 REG
8″	203 mm	71.4 mm	333 mm	2800 kN	45 kN·m	3238 mm	6-5/8 REG
9″	229 mm	76.2 mm	341 mm	3000 kN	65 kN·m	3510 mm	6-5/8 REG
9-1/2″	241 mm	76.2 mm	345 mm	3500 kN	50 kN·m	3510 mm	7-5/8 REG

Applications

The KTK Energy Hydraulic Jar Intensifier is widely used in:

Oil & Gas Drilling Operations

• Stuck pipe recovery
• Fishing operations
• Deep well drilling

Directional & Horizontal Wells

• Extended reach drilling (ERD)
• Complex trajectory control operations

Well Intervention Services

• Workover operations
• Re-entry drilling
• Downhole tool recovery

HPHT & Complex Formations

• High pressure wells
• High temperature environments
• Unstable shale formations

Advantages

Increased Jarring Efficiency

Amplifies hydraulic jar impact energy for faster stuck pipe release.

Reduced Non-Productive Time (NPT)

Improves operational success rate in fishing and recovery operations.

Enhanced BHA Protection

Reduces shock loads and minimizes damage to drillstring components.

Reliable Mechanical Performance

Fully downhole mechanical design ensures stable operation under extreme conditions.

Global Field Proven Solution

Suitable for offshore, onshore, and deepwater drilling environments.

Supplier + Manufacturer Hybrid (KTK Energy)

KTK Energy integrates engineering design, manufacturing participation, and global supply chain capability to deliver consistent-quality downhole fishing tools for international oilfield service companies.

FAQ

What is a hydraulic jar intensifier used for?

A hydraulic jar intensifier is used to increase the impact force of a hydraulic fishing jar, improving stuck pipe recovery efficiency in drilling operations.

How does a jar intensifier work?

It accelerates both the upper and lower drill string sections, increasing impact velocity and delivering higher jarring force at the stuck point.

What is the difference between a hydraulic jar and a jar intensifier?

A hydraulic jar generates impact force, while the intensifier amplifies that force to improve overall jarring performance.

Can it be used in deep wells?

Yes, KTK Energy jar intensifiers are designed for deep, directional, and HPHT well environments.

Does it reduce drill string damage?

Yes, it reduces rebound shock and minimizes stress on the drill stem and BHA components.
