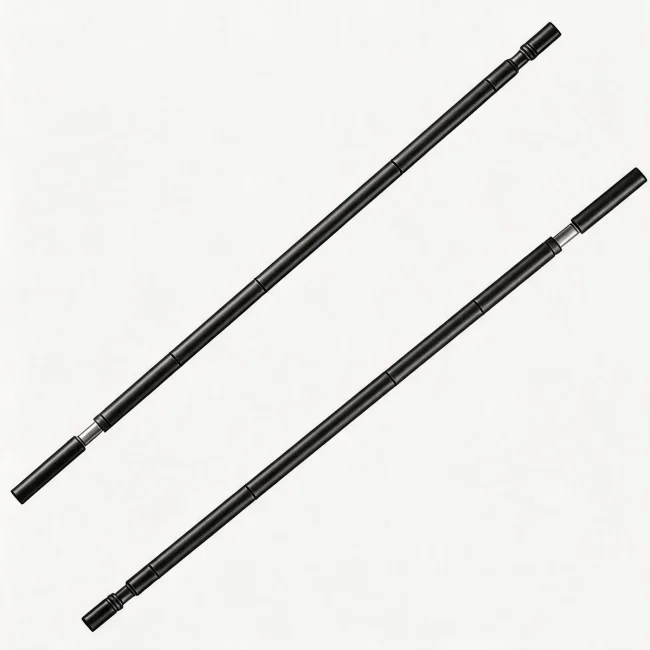

The KTK Energy Mechanical Drilling Jar is a fully mechanical downhole impact tool designed to free stuck drill strings and downhole assemblies during drilling operations.
It provides both upward (tension) and downward (compression) jarring forces, enabling efficient release of stuck tools caused by differential sticking, borehole collapse, cuttings accumulation, or mechanical obstruction.
When not activated, the jar functions as an integral part of the Bottom Hole Assembly (BHA), ensuring continuous drilling performance. Once engaged, it delivers controlled impact energy to assist in freeing the stuck string, significantly reducing non-productive time (NPT).
Engineered for vertical, directional, deep, and complex wells, the KTK Energy mechanical drilling jar is widely used in global oil & gas drilling operations where reliability and downhole safety are critical.
Key Features
Bi-Directional Jarring Capability
Provides both upward and downward impact forces, increasing flexibility in stuck pipe recovery operations.
Fully Mechanical Activation
No hydraulic or electronic systems required, ensuring high reliability and simplicity in harsh downhole environments.
Adjustable Jarring Force
Impact intensity in both tension and compression modes can be preset at the workshop or rig site according to operational requirements.
Flexible Joint Design
Reduces bending stress on the jar body, improving fatigue resistance and extending service life.
High Load Capacity
Designed to withstand extreme tensile, torsional, and impact loads in deep and complex wells.
BHA Integration
Operates as a standard BHA component when not activated, ensuring drilling continuity without interruption.
Technical Specifications
Available Sizes & Performance
| Parameter | Unit | 4-3/4″ | 6-1/2″ | 8″ |
| Outer Diameter | mm (inch) | 121 (4-3/4) | 165 (6-1/2) | 203 (8) |
| Inner Diameter | mm (inch) | 44.5 (1-3/4) | 57.2 (2-1/4) | 70 (2-3/4) |
| Tool Joint Connection | API | NC38 | NC50 | 6-5/8 REG |
| Max Upward Jarring Force | kN (lbf) | 350 (79,000) | 700 (160,000) | 1000 (225,000) |
| Max Downward Jarring Force | kN (lbf) | 180 (40,000) | 350 (79,000) | 500 (112,000) |
| Max Tensile Load | kN (lbf) | 1100 (247,000) | 2000 (450,000) | 2800 (630,000) |
| Tensile Yield Strength | kN (lbf) | 1950 (438,000) | 3750 (843,000) | 6650 (1,495,000) |
| Torsional Capacity | kN·m | 15 | 30 | 45 |
| Torsional Yield | kN·m | 27 | 75 | 90 |
| Overall Length | mm (ft) | 8950 (29.4) | 9310 (30.5) | 9806 (32.2) |
Applications
The KTK Energy Mechanical Drilling Jar is widely used in:
Oil & Gas Drilling Operations
- Stuck pipe recovery
- Directional drilling BHA systems
- Deep and extended reach wells
Complex Formation Drilling
- Shale and unstable formations
- High deviation wells
- Collapse-prone boreholes
Well Intervention Operations
- Fishing operations
- Re-entry and sidetracking
- Workover applications
High-Risk Drilling Environments
- Deepwater wells
- High-pressure/high-temperature (HPHT) wells
- Horizontal and extended reach drilling (ERD)
Advantages
Effective Stuck Pipe Solution
Provides immediate mechanical impact force to release stuck drill strings and reduce NPT.
Reliable Mechanical Design
Fully mechanical structure eliminates dependency on hydraulic or electronic systems.
Enhanced Drilling Efficiency
Reduces downtime during drilling interruptions, improving overall operational efficiency.
High Durability in Harsh Conditions
Designed to withstand extreme load, torque, and downhole impact environments.
Flexible Operational Control
Adjustable jarring force allows optimization based on well conditions.
Supplier + Manufacturing Capability (KTK Energy)
KTK Energy operates as a hybrid supplier and engineering manufacturer, delivering high-performance drilling jars with strict quality control, API-aligned manufacturing processes, and global supply capability for oilfield service companies.
FAQ
What is a mechanical drilling jar used for?
A mechanical drilling jar is used to generate controlled impact forces to free stuck drill strings during drilling operations.
How does a drilling jar work?
It stores mechanical energy in the drill string and releases it suddenly to create upward or downward impact force to free stuck equipment.
What is the difference between mechanical and hydraulic jars?
Mechanical jars operate purely through mechanical activation, while hydraulic jars use fluid pressure control systems for impact timing.
Can the jar be used in directional drilling?
Yes, the KTK Energy mechanical drilling jar is designed for vertical, directional, and horizontal wells.
How is jarring force adjusted?
Jarring force can be pre-set at the workshop or rig site by adjusting mechanical settings based on operational requirements.
Conclusion
The Mechanical Drilling Jar from KTK Energy is a reliable downhole tool engineered for efficient stuck pipe recovery in complex drilling environments.
With high load capacity, bi-directional impact capability, and fully mechanical operation, it provides a robust and dependable solution for minimizing non-productive time and ensuring drilling continuity.
