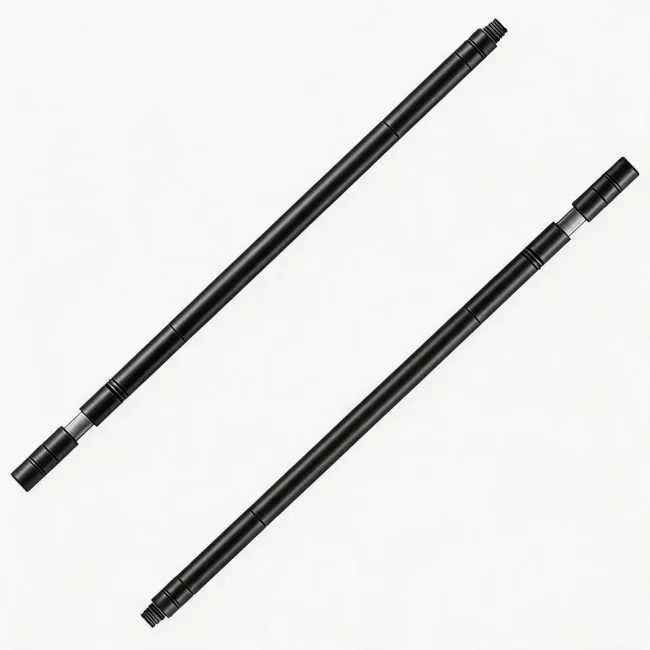

The KTK Energy Mechanical-Hydraulic Shock Absorber is an advanced dual-acting downhole vibration control tool engineered to mitigate axial shock, torsional vibration, and bit bounce during drilling operations.
Designed for demanding oil & gas directional drilling, horizontal wells, and HPHT environments, this tool integrates disc spring energy storage technology with silicone oil hydraulic damping, forming a highly efficient energy absorption system.
By smoothing drilling dynamics and reducing harmful impact loads, the KTK Energy shock absorber significantly improves rate of penetration (ROP), protects critical BHA components (including MWD/LWD tools and downhole motors), and extends overall drilling assembly life.
KTK Energy operates as a supplier + manufacturer hybrid, delivering API-standard shock absorption solutions trusted by international drilling contractors across the Middle East, Africa, North America, and offshore fields.
Technical Specifications
Available Sizes & Mechanical Performance
| Size | OD | ID | Connection | Max Tensile Load | Tensile Yield | Max Pressure | Max Stroke | Overall Length |
| 4-3/4″ | 121 mm | 38 mm | NC38 | 1100 kN | 1950 kN | 300 kN | 100 mm | 4185 mm (13.7 ft) |
| 6-1/4″ | 159 mm | 50.8 mm | NC50 | 1500 kN | 2000 kN | 450 kN | 120 mm | 4224 mm (13.9 ft) |
| 7″ | 178 mm | 57 mm | NC50 | 1500 kN | 2500 kN | 450 kN | 120 mm | 4287 mm (14.1 ft) |
| 8″ | 203 mm | 71.4 mm | 6-5/8 REG | 2000 kN | 3500 kN | 550 kN | 140 mm | 4856 mm (15.9 ft) |
Design & Operating Parameters
- Dual-energy damping system: Disc spring + silicone oil hydraulic chamber
- Function: Axial shock absorption + vibration damping
- Temperature rating: up to 180°C (optional high-temperature configuration)
- Application: Full compatibility with BHA, drilling motors, and MWD/LWD systems
- Structure: Heavy-duty oilfield-grade mechanical housing
Key Features
Dual-Action Shock Absorption System
Combines mechanical spring energy storage with hydraulic damping for continuous vibration reduction.
Bit Bounce & Vibration Control
Effectively reduces drilling impact forces, improving bit stability and cutting efficiency.
High Load-Bearing Capacity
Engineered for extreme axial, torsional, and pressure loads in deep and complex wells.
High-Temperature Operation Capability
Optional design supports up to 180°C downhole environments for HPHT drilling.
Robust & Field-Proven Structure
Heavy-duty design ensures reliability in directional, horizontal, and extended reach drilling.
Low Maintenance Design
Simplified mechanical-hydraulic system reduces maintenance frequency and operational downtime.
Applications
The KTK Energy Mechanical-Hydraulic Shock Absorber is widely used in:
Oil & Gas Drilling Operations
- Directional drilling systems
- Horizontal and extended reach wells (ERD)
- Deep and ultra-deep drilling projects
HPHT & Complex Wells
- High-pressure/high-temperature formations
- Deepwater offshore drilling
- High vibration and stick-slip conditions
BHA Protection Applications
- MWD/LWD tool protection
- Downhole motor stabilization
- Drill bit impact mitigation
Hard Formation Drilling
- Abrasive rock formations
- Interbedded shale and sandstone layers
- High torsional vibration environments
Advantages
Improved Drilling Stability
Reduces axial vibration and shock loads, ensuring smoother drilling performance.
Enhanced Rate of Penetration (ROP)
Stable bit-rock interaction improves cutting efficiency and drilling speed.
Extended Tool Life
Protects drill bits, motors, and sensitive downhole instruments from excessive fatigue.
Reduced Non-Productive Time (NPT)
Minimizes equipment failure caused by vibration and impact stress.
Improved BHA Reliability
Ensures stable performance of complex bottom hole assemblies in harsh environments.
Supplier + Manufacturer Hybrid Advantage (KTK Energy)
KTK Energy integrates engineering design, manufacturing capability, and global supply chain control to deliver consistent, high-reliability drilling tools for international oilfield service companies.
FAQ
What is a mechanical-hydraulic shock absorber used for in drilling?
It is used to reduce axial vibration and drilling shock, protecting the drill string and downhole tools while improving drilling stability.
How does a mechanical-hydraulic shock absorber work?
It combines disc spring energy storage with hydraulic silicone oil damping to absorb and dissipate drilling impact energy.
What is the difference between a shock absorber and a drilling jar?
A shock absorber continuously reduces vibration during drilling, while a drilling jar delivers impact force for stuck pipe recovery.
Can this tool be used in HPHT wells?
Yes, KTK Energy offers high-temperature versions rated up to 180°C, suitable for HPHT drilling environments.
Does it improve drilling performance?
Yes, it improves ROP, reduces bit wear, and stabilizes BHA dynamics in complex formations.
Which tools are protected by this shock absorber?
It protects drill bits, downhole motors, MWD/LWD tools, and sensitive directional drilling instruments.
