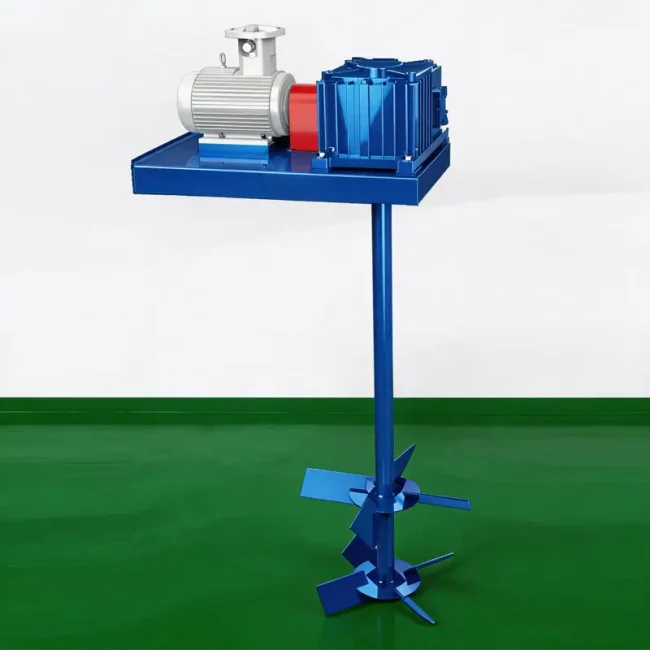

The KTK Energy Mud Agitator is a high-efficiency mechanical mixing device designed to maintain uniform suspension of solids in drilling fluid systems. As a critical component of solids control systems, it ensures consistent mud properties, prevents solids settlement, and enhances overall drilling performance.
Engineered in compliance with API standards, the KTK Energy mud agitator is driven by an explosion-proof motor and coupled with a robust oilfield gearbox. The system efficiently converts mechanical energy into fluid circulation through impellers, ensuring homogeneous mud mixing across all compartments.
With a supplier + manufacturer hybrid capability, KTK Energy delivers reliable, customizable mud agitation solutions for oil & gas drilling contractors across the Middle East, Africa, North America, and offshore environments.
Technical Specifications
General Parameters
| Model | Motor Power (kW/HP) | Impeller Speed (RPM) | Impeller Diameter (mm/in) | Gear Ratio | Dimension (mm) |
| KTA5.5 | 5.5 / 7.5 | 72 | 600 / 23.6 | 20:1 / 25:1 | 1020×660×560 |
| KTA7.5 | 7.5 / 10 | 72 | 750 / 29.5 | 20:1 / 25:1 | 1060×600×604 |
| KTA11 | 11 / 15 | 73 | 850 / 33.5 | 20:1 / 25:1 | 1200×640×673 |
| KTA15 | 15 / 20 | 73 | 900 / 35.4 | 20:1 / 25:1 | 1290×710×685 |
| KTA22 | 22 / 30 | 73 | 900–1000 / 35.4–39.4 | 20:1 / 25:1 | 1428×860×705 |
Engineering Parameters
- Power Supply: 380V / 50Hz or 460V / 60Hz (customizable)
- Shaft Length: Customized based on mud tank depth
- Gearbox Type: Helical bevel / helical worm
- Installation Type: Vertical / Horizontal
- Material Options: Carbon steel / H₂S-resistant steel
- Certifications: ATEX / IEC / UL / DGMS (optional)
- Design Standard: API-compliant
Key Features
1. Efficient Solid Suspension
Maintains uniform distribution of drilled solids, preventing sedimentation and improving mud system performance.
2. Explosion-Proof Motor Design
Ensures safe operation in hazardous oilfield environments.
3. Direct-Coupled Gear System
“C-face” motor connection eliminates misalignment and reduces maintenance.
4. Flexible Gearbox Options
- Helical bevel gearbox: stable and high efficiency
- Worm gearbox: cost-effective and reliable
5. Customizable Configuration (KTK Energy)
Supports:
- Shaft length customization
- Impeller configuration (single / double / inclined)
- Electrical standards and certifications
6. Durable and Low Maintenance
High-quality materials and simplified structure reduce wear and extend service life.
Applications
1. Oil & Gas Drilling Mud Systems
- Maintaining mud homogeneity
- Preventing solids settling
- Supporting solids control equipment
2. Mud Tank Systems
- Typically installed at 3-meter intervals
- Used in all compartments except shaker tank
3. Horizontal Directional Drilling (HDD)
- Fluid mixing in pipeline drilling projects
4. Geothermal Drilling
- High-temperature fluid mixing applications
5. Offshore Drilling Platforms
- Continuous mud agitation under dynamic conditions
Advantages
✔ Stable Mud Properties
Ensures consistent density and viscosity for optimal drilling performance
✔ Improved Drilling Efficiency
Prevents solids accumulation and reduces operational interruptions
✔ Low Maintenance Cost
Simple structure with minimal wearing parts
✔ Flexible Customization
Adaptable to different rig sizes and mud tank configurations
✔ Enhanced Equipment Life
Reduces load on pumps and other solids control equipment
✔ Supplier + Manufacturer Hybrid (KTK Energy)
KTK Energy combines:
- Engineering design
- Manufacturing participation
- Global sourcing network
Delivering reliable and cost-effective solutions for international drilling contractors
FAQ
What is a mud agitator used for?
A mud agitator is used to keep drilling fluids uniformly mixed by suspending solids and preventing sedimentation in mud tanks.
Where is a mud agitator installed?
It is installed in mud tanks, typically one unit per 3 meters, except in the shaker compartment.
What types of mud agitators are available?
Common types include:
- Helical bevel gear agitators
- Worm gear agitators
- Vertical and horizontal installation types
Why is mud agitation important in drilling?
It maintains stable mud properties such as density and viscosity, which are critical for well control and drilling efficiency.
Can mud agitators be customized?
Yes, KTK Energy provides customized solutions including shaft length, motor specifications, certifications, and materials.
Are mud agitators suitable for offshore drilling?
Yes, they are widely used in both onshore and offshore drilling operations.
Conclusion
The KTK Energy Mud Agitator is a reliable and essential component in modern drilling fluid systems, ensuring stable mud properties, improved drilling efficiency, and reduced operational risk.
With API-compliant design, flexible configurations, and strong global supply capability, KTK Energy provides high-performance mud agitation solutions tailored to demanding oilfield environments worldwide.
