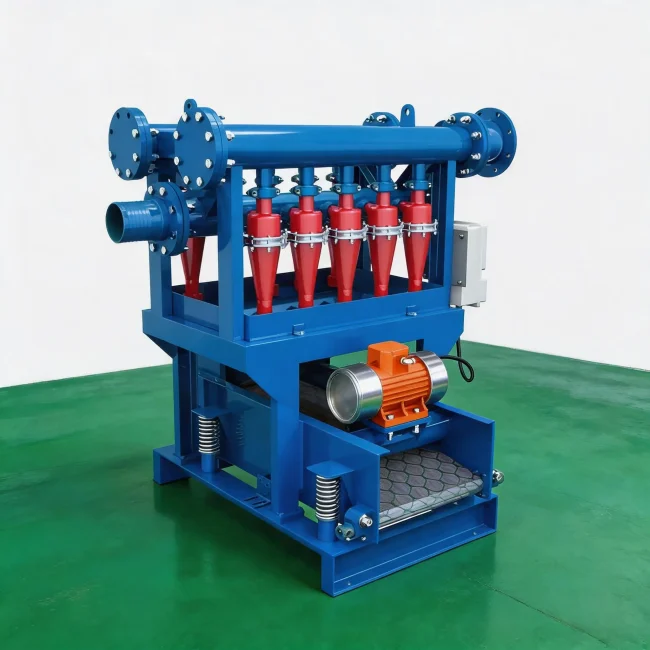

The Mud Desilter from KTK Energy is a high-efficiency solids control equipment designed for the third-phase separation in drilling fluid systems. It is primarily used to remove fine solid particles in the range of 15–44 microns, significantly improving drilling fluid performance and reducing equipment wear.
As a critical component of the solids control system, the desilter operates based on hydrocyclone separation principles, similar to desanders but with a finer cut point, ensuring enhanced solids removal efficiency.
Engineered in compliance with API standards, KTK Energy’s Mud Desilter integrates robust design, flexible configuration, and reliable performance, making it suitable for demanding onshore and offshore drilling environments.
Technical Specifications
|
Model |
KTN104 | KTN124 |
|
Capacity |
800 GPM | 1050 GPM |
| Cone Size | 4 inch |
4 inch |
|
Hydrocyclone Quantity |
10 pcs | 12 pcs |
| Working Pressure | 0.25 – 0.4 MPa |
0.25 – 0.4 MPa |
|
Inlet Size |
6 inch | 6 inch |
| Outlet Size | 8 inch |
8 inch |
|
Vibration Motor |
0.75 kW | 0.75 kW |
| Screen Size (L×W) | 750 × 900 mm |
700 × 900 mm |
|
Screen Area |
0.8 m² | 0.8 m² |
| Adjustable G-Force | ≤ 7.1 G |
≤ 7.0 G |
|
Weight |
1150 kg |
1250 kg |
| Dimensions | 1455 × 2427 × 1774 mm |
1560 × 2427 × 1774 mm |
Key Features of KTK Energy Mud Desilter
1. High-Efficiency Fine Solids Removal
Designed to remove 15–44 μm particles, improving drilling fluid cleanliness and enhancing overall drilling efficiency.
2. Durable Polyurethane Hydrocyclones
- 100% polyurethane (PU)cones
- Excellent abrasion and corrosion resistance
- Extended service life in harsh drilling environments
3. Integrated Bottom Shaker (Optional)
Optional underflow shale shaker improves solids drying and reduces fluid loss, forming a compact desilter cleaner system.
4. Easy Maintenance & Operation
- Clamp-type design for quick cone replacement
- Minimal spare parts requirement
- Reduced downtime and maintenance cost
5. API-Compliant Manufacturing
Manufactured according to API standards, ensuring reliability, safety, and compatibility with global oilfield systems.
6. Advanced Surface Protection
- Strict sandblasting and coating process
- Anti-abrasion & anti-corrosion industrial coating
- Suitable for offshore and harsh environments
Applications
KTK Energy Mud Desilters are widely used in:
- Oil & gas drilling solids control systems
- Onshore drilling rigs (Middle East / Africa / US shale)
- Offshore drilling platforms
- Water-based and oil-based drilling fluids
- Directional drilling operations
- HDD (Horizontal Directional Drilling) projects
Advantages – Why Choose KTK Energy
Supplier + Manufacturer Hybrid Model
KTK Energy combines engineering manufacturing capability with global sourcing, offering:
- Better quality control
- Flexible customization
- Competitive pricing
- Stable delivery timelines
Improved Drilling Efficiency
- Reduces fine solids accumulation
- Enhances drilling fluid performance
- Improves rate of penetration (ROP)
Reduced Operating Cost
- Extends mud life cycle
- Minimizes equipment wear
- Reduces chemical consumption
Flexible Configuration Options
KTK Energy offers customized configurations for international clients:
- Electrical systems (ATEX, IEC, UL, DGMS compliant)
- Shaker size selection
- Hydrocyclone quantity
- Color and branding customization
Call to Action
Looking for a reliable Mud Desilter supplier and manufacturer?
KTK Energy provides high-performance, API-compliant solids control equipment tailored to your drilling conditions.
Contact us today for technical consultation and fast quotation.
