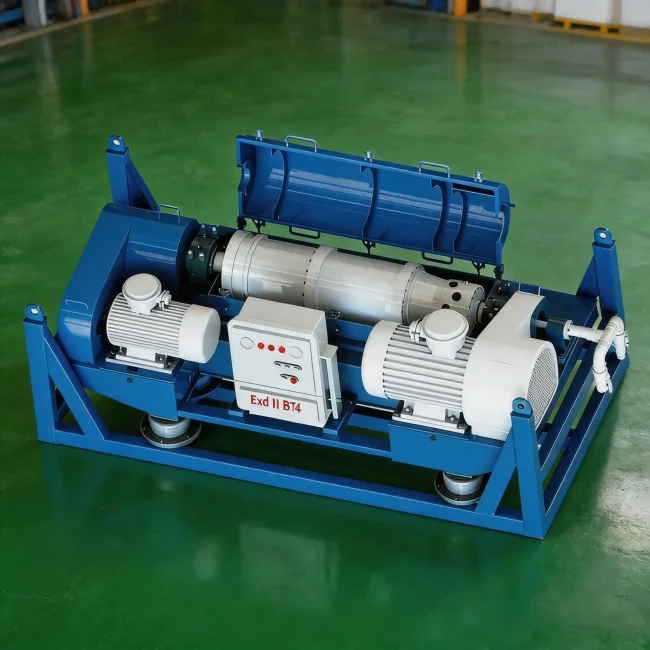

Oilfield Decanter Centrifuge is a high-speed solid-liquid separation system used in drilling fluid management and oilfield waste treatment. It is designed to remove ultra-fine solids (2–7 microns) from drilling fluids, ensuring optimal fluid performance, reduced waste, and improved drilling efficiency.
At KTK Energy Limited, our decanter centrifuges are engineered to meet API standards and deliver stable performance in demanding environments such as onshore drilling, offshore rigs, refinery processing, and environmental treatment projects.
As drilling operations move toward deeper wells and more complex formations, efficient solids control becomes critical. KTK Energy centrifuges provide continuous operation, high separation efficiency, and robust mechanical reliability, helping operators reduce non-productive time (NPT) and optimize overall drilling performance.
Technical Specifications
|
Model |
KTK450 | KTK355 | KTK355-PRO |
| Bowl Diameter | 450 mm (18″) | 355 mm (14″) |
355 mm (14″) |
|
Bowl Length |
1000 mm | 1257 mm | 1422 mm |
| Max Speed | 3200 RPM | 4000 RPM |
4000 RPM |
|
Typical Speed |
1700 / 2200 RPM | 2000 / 3200 RPM | 1900 / 2500 / 3200 RPM |
| Separation Factor | 728 / 1215 | 794 / 2032 |
717 / 1241 / 2033 |
|
Capacity |
Up to 45 m³/h | Up to 35 m³/h |
Up to 35 m³/h |
|
Cut Point (D50) |
4–7 μm | 2–7 μm | 2–7 μm |
|
Main Motor |
30 kW | 30 kW |
37 kW |
| Back Drive Motor | 7.5 kW | 7.5 kW |
11 kW |
|
Gearbox Type |
Planetary | Planetary |
Planetary |
Additional Parameters:
- Dimensions: Up to 3200 × 2200 × 1470 mm
- Weight: Up to 3500 kg
- Continuous operation capability
- Adjustable bowl speed for process optimization
Key Features
1. High-Efficiency Fine Solids Separation
- Removes solids down to 2–7 microns
- Improves drilling fluid stability and performance
2. Continuous and Stable Operation
- Designed for 24/7 operation in harsh oilfield conditions
- Reduces downtime and improves operational reliability
3. Wide Application Flexibility
- Suitable for multiple processes:
- Drilling fluids
- Oily sludge treatment
- Slop oil recovery
- Refinery separation
4. Optimized Fluid Management
- Reduces mud dilution and chemical consumption
- Enhances fluid recycling efficiency
5. Robust Mechanical Design
- Equipped with planetary gearbox system
- High-speed rotating bowl for reliable and stable performance
6. Engineering-Driven Customization
- Adjustable speed and separation parameters
- Tailored solutions for different drilling environments
Applications
KTK Energy decanter centrifuges are widely used in:
Oil & Gas Drilling
- Final-stage solids control in drilling fluid systems
Oilfield Waste Management
- Treatment of oily sludge and slop oil
Refinery Processes
- Separation of oil-water-solid mixtures
Tank Bottom Recovery
- Recovery of valuable hydrocarbons from tank residues
Environmental Protection Projects
- Fluid recycling and waste minimization
Advantages
- ✅ API-compliant design, suitable for global oilfield standards
- ✅ Ultra-fine solids removal, improving drilling performance
- ✅ Reduced operational costthrough fluid recovery and waste minimization
- ✅ Continuous operation, minimizing non-productive time (NPT)
- ✅ Supplier + manufacturer hybrid model, ensuring quality + cost advantage
- ✅ Strong adaptabilityacross drilling, refinery, and environmental applications
- ✅ Global project support, serving Middle East, Africa, Asia-Pacific, and the Americas
FAQ – Oilfield Decanter Centrifuge
Q1: What is a decanter centrifuge used for in oilfield operations?
It is used for separating fine solids from drilling fluids, improving fluid quality and reducing waste in drilling operations.
Q2: What particle size can a decanter centrifuge remove?
KTK Energy centrifuges can remove particles as small as 2–7 microns, depending on configuration.
Q3: How does a decanter centrifuge improve drilling efficiency?
By removing ultra-fine solids, it stabilizes drilling fluids, reduces wear on equipment, and minimizes fluid dilution.
Q4: Can the centrifuge operate continuously?
Yes, it is designed for continuous operation in harsh oilfield conditions with minimal downtime.
Q5: Is customization available?
Yes, KTK Energy provides customized configurations including speed control, capacity, and system integration.
Why Choose KTK Energy Decanter Centrifuge?
As an engineering-driven supplier, KTK Energy Limited combines manufacturing participation with global sourcing expertise, delivering reliable solids control solutions tailored to real drilling challenges.
Our decanter centrifuges are not just equipment—they are part of a complete solids control and fluid management system, helping clients:
- Improve drilling efficiency
- Reduce operational risks
- Minimize downtime
- Optimize overall fluid performance
