A Shale Shaker is the primary solids control equipment used in drilling operations to separate drill cuttings from drilling fluids. As the first-stage solids control device, it plays a critical role in maintaining drilling fluid performance, reducing waste, and improving overall drilling efficiency.
At KTK Energy Limited, our shale shakers are engineered for reliable performance in onshore oil & gas drilling, geothermal drilling, water well drilling, HDD (Horizontal Directional Drilling), and coalbed methane operations.
KTK Energy offers a full range of shaker configurations, including:

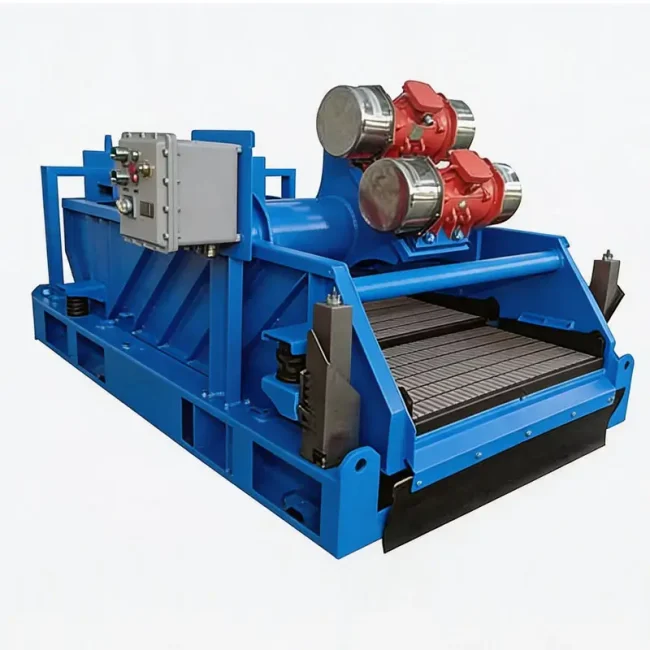

- Linear motion shale shaker
- Double deck shale shaker
- Dual tandem shaker
- Dual motion shale shaker
Our systems are designed to comply with API standards, ensuring consistent quality, durability, and compatibility with global drilling operations. With a focus on high solids removal efficiency, easy maintenance, and flexible configuration, KTK Energy shale shakers provide a complete solution for modern drilling fluid management systems.
Technical Specifications
|
Model |
Capacity (m³/h) | Screen Area (m²) | Screen No. | Motor Power (kW) |
Deck Angle |
| KTSS3 | 120 | 2.0 | 3 | 2 × 1.5 | -1° to +5° |
| KTSS4 | 140 | 2.7 | 4 | 2 × 1.72 | -1° to +5° |
|
KTSS5 |
180 | 3.8 | 5 | 2 × 1.94 | -1° to +5° |
|
KTSS-Mini |
50 | 1.35 | 2 | 2 × 0.75 | 0° |
| KTSS4V | 120 | 2.7 | 4 | 2 × 1.72 |
-1° to +5° |
|
KTSS5V |
120 | 2.8 | 5 | 2 × 1.94 | -1° to +5° |
| KTSS4D | 280 | 5.4 | 8 | 2 × 2 × 1.72 |
-1° to +5° |
| KTSS4T | 420 | 8.1 | 12 | 3 × 2 × 1.72 |
-1° to +5° |
Optional Configurations:
- Vibration Motor: Martin / OLI / Ital-Vibras
- Screen Type: Stainless steel frame / Composite frame
- Electrical Standard: Customizable (IEC, ATEX, etc.)
- Multi-unit systems: Dual / Triple shaker configurations
- Special screens: Dryer screens / fine mesh screens
Key Features
1. High-Efficiency Solids Separation
- Optimized vibration system ensures effective removal of drill cuttings
- Maintains drilling fluid properties and reduces dilution costs
2. Flexible Deck Angle Adjustment
- Adjustable deck angle (-1° to +5°)
- Allows optimization for different drilling conditions and flow rates
3. Quick Screen Replacement System
- Fast screen change design reduces downtime
- Improves operational efficiency on rig sites
4. Durable and Corrosion-Resistant Construction
- High-quality raw materials with full basket heat treatment
- Wear-resistant coatings and stainless steel fasteners
5. Low Maintenance and High Reliability
- Simplified structure with fewer wear parts
- Reduces maintenance frequency and operating costs
6. Customizable Engineering Solutions
- Tailored shaker configurations for specific drilling projects
- Compatible with complete solids control systems
Applications
KTK Energy shale shakers are widely used in:
Oil & Gas Drilling
- Primary solids control equipment for onshore and offshore rigs
Geothermal Drilling
- Efficient separation of high-temperature drilling fluids
Horizontal Directional Drilling (HDD)
- Mud recycling and solids removal in trenchless operations
Water Well Drilling
- Improving drilling efficiency and reducing fluid loss
Coalbed Methane (CBM)
- Handling fine solids and maintaining fluid quality
Advantages
- ✅ API-compliant design, suitable for international oilfield standards
- ✅ High solids removal efficiency, improving drilling performance
- ✅ Reduced operational costthrough fluid recovery and low maintenance
- ✅ Flexible configurationsfor different drilling environments
- ✅ Supplier + manufacturer hybrid model, ensuring quality + competitive pricing
- ✅ Global project support, serving Middle East, Africa, Asia-Pacific, and the Americas
- ✅ User-friendly design, enabling fast operation and minimal training
FAQ – Shale Shaker
Q1: What is the function of a shale shaker in drilling?
A shale shaker separates drill cuttings from drilling fluid, serving as the first stage of solids control to maintain fluid performance and reduce waste.
Q2: What types of shale shakers does KTK Energy offer?
KTK Energy provides linear motion, double deck, dual tandem, and dual motion shale shakers to meet different operational requirements.
Q3: Are KTK Energy shale shakers API compliant?
Yes, all shale shakers are designed and manufactured in accordance with API standards for global oilfield operations.
Q4: What factors affect shale shaker performance?
Key factors include vibration force, screen mesh size, deck angle, and drilling fluid properties.
Q5: Can shale shakers be customized?
Yes, KTK Energy offers full customization including motor brand, screen type, electrical standards, and system configuration.
Why Choose KTK Energy Shale Shakers?
As an engineering-driven supplier, KTK Energy Limited combines manufacturing participation with strong China supply chain integration, delivering high-performance solids control equipment for global drilling contractors.
Our shale shakers are not just standalone equipment—they are designed as part of a complete solids control solution, helping clients reduce drilling costs, improve efficiency, and ensure stable operations in complex environments.
