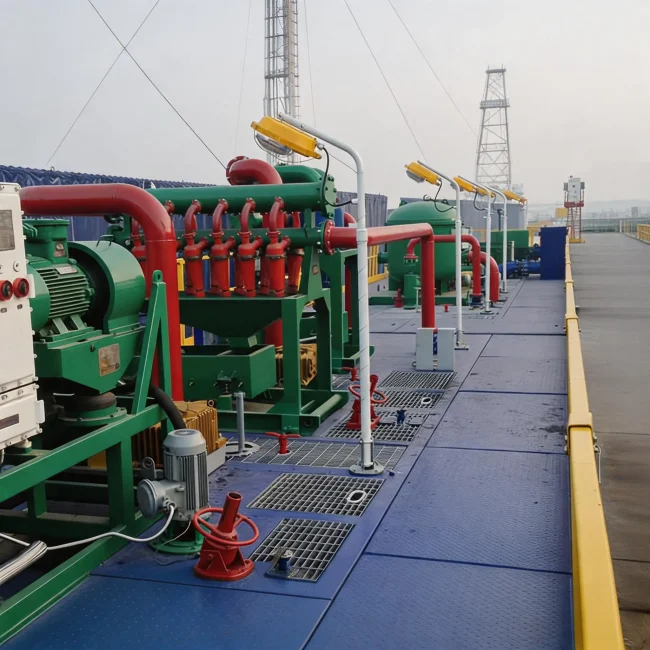

The KTK Energy Solids Control System is an integrated, API-compliant drilling fluid processing solution designed to efficiently remove drilled solids and maintain optimal mud properties in oil & gas drilling operations.
By utilizing a multi-stage physical separation process, the system ensures effective removal of solid particles from drilling fluids, improving mud performance, reducing drilling risks, and minimizing non-productive time (NPT).
Designed for a wide range of drilling rigs from 250HP to 3000HP, KTK Energy provides modular and scalable solids control systems tailored to onshore, offshore, and harsh environment drilling projects across the Middle East, Africa, and North America.
As a supplier + manufacturer hybrid, KTK Energy combines engineering design, manufacturing participation, and global sourcing capability to deliver reliable, field-proven solids control solutions.
Technical Specifications
System Capacity & Configuration
|
Rig Power |
Processing Capacity (m³/h) | System Volume | Mud Tanks | Typical Application |
|
350–650HP |
90–120 | 60 m³ | 2 | Small rigs / workover |
| 750HP | 180 | 120 m³ | 3 |
Medium drilling rigs |
|
1000HP |
240 | 140 m³ | 4 | Standard drilling |
| 1500HP | 240 | 200 m³ | 5 |
Deep drilling |
| 2000HP | 300 | 370 m³ | 7 |
Large-scale operations |
Core Equipment Configuration
Primary Solids Removal Equipment (5-Stage System)
- Shale Shaker (coarse separation)
- Vacuum Degasser (gas removal)
- Desander (47–76 micron separation)
- Desilter (fine solids removal)
- Decanter Centrifuge (2–7 micron ultra-fine separation)
Mud System & Storage Units
- Mud Tanks (trip tank, mixing tank, storage tank, circulation tank)
- Mud Agitator
- Mud Gun
- Jet Mud Mixer
Auxiliary Equipment
- Centrifugal Pumps (desander, desilter, mixing, transfer)
- Screw Pumps / Slurry Pumps
- Electrical Control Panels
- Flare Ignition Device (optional)
Key Features
1. Multi-Stage High-Efficiency Separation
Five-stage purification system ensures removal of solids from coarse cuttings to ultra-fine particles.
2. Modular System Design
Flexible tank configuration and equipment layout for easy transportation, installation, and scalability.
3. API-Compliant Engineering
Designed according to international oilfield standards for global compatibility.
4. Robust Tank Structure
- Corrugated V-type tank design
- High structural strength
- Anti-leakage and anti-corrosion coating
5. Adaptability to Harsh Environments
- High-temperature resistance
- Cold-resistant design
- Explosion-proof configuration
6. Integrated Mud Management
Supports mud mixing, storage, transfer, and treatment within a unified system.
Applications
1. Oil & Gas Drilling Operations
- Onshore drilling rigs
- Offshore drilling platforms
- Deep well and HPHT drilling
2. Drilling Fluid Management
- Removal of drilled cuttings
- Mud density and viscosity control
- Gas-cut mud treatment
3. Complex Drilling Environments
- High solids content formations
- Unstable wellbore conditions
- High-risk drilling operations
4. Workover & Completion Operations
- Mud recycling
- Well intervention support
Advantages
✔ Improved Drilling Efficiency
Ensures clean drilling fluid for better bit performance and reduced torque
✔ Reduced Drilling Cost
Minimizes mud loss and reduces waste treatment expenses
✔ Enhanced Well Control Safety
Prevents gas-cut mud and stabilizes wellbore pressure
✔ High System Reliability
Durable design suitable for continuous operation in harsh environments
✔ Flexible Customization
System configuration tailored to rig size and project requirements
✔ Supplier + Manufacturer Hybrid (KTK Energy)
KTK Energy integrates:
- Engineering design
- Manufacturing capability
- Global supply chain
Providing turnkey solids control solutions with fast delivery and technical support
FAQ
What is a solids control system in drilling?
A solids control system is a set of equipment used to remove drilled solids from drilling fluid to maintain mud properties and improve drilling efficiency.
Why is solids control important in oil drilling?
It prevents solids buildup, stabilizes drilling fluid properties, reduces equipment wear, and minimizes drilling risks.
What are the main components of a solids control system?
The system typically includes:
- Shale shaker
- Vacuum degasser
- Desander
- Desilter
- Decanter centrifuge
- Mud tanks and mixing equipment
How does a solids control system work?
Drilling fluid passes through multiple stages of separation, removing solids of decreasing particle size from coarse cuttings to ultra-fine particles.
Can solids control systems be customized?
Yes, KTK Energy provides customized system configurations based on rig size, drilling conditions, and project requirements.
Is the system suitable for offshore drilling?
Yes, KTK Energy solids control systems are designed for both onshore and offshore applications.
Conclusion
The KTK Energy Solids Control System is a comprehensive, high-performance solution for drilling fluid management in modern oilfield operations.
With its multi-stage separation technology, modular design, and API-compliant engineering, it enables operators to achieve optimal drilling efficiency, reduce costs, and improve operational safety.
As a trusted supplier + manufacturer hybrid, KTK Energy delivers reliable, customizable solids control systems tailored to global oil & gas drilling challenges.
